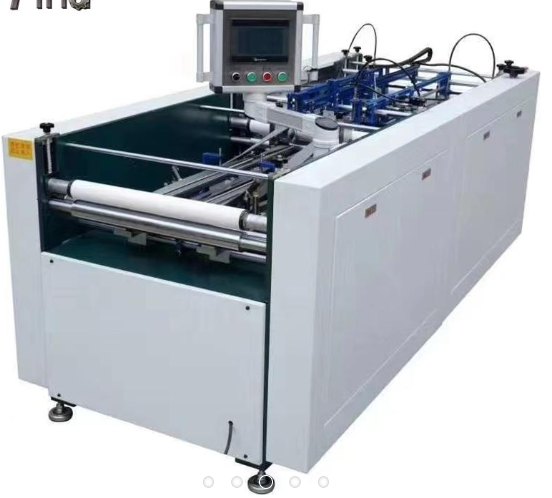

STC-FSCW-900 Automatic Four Sides Wrapping Machine

Availability: In Stock

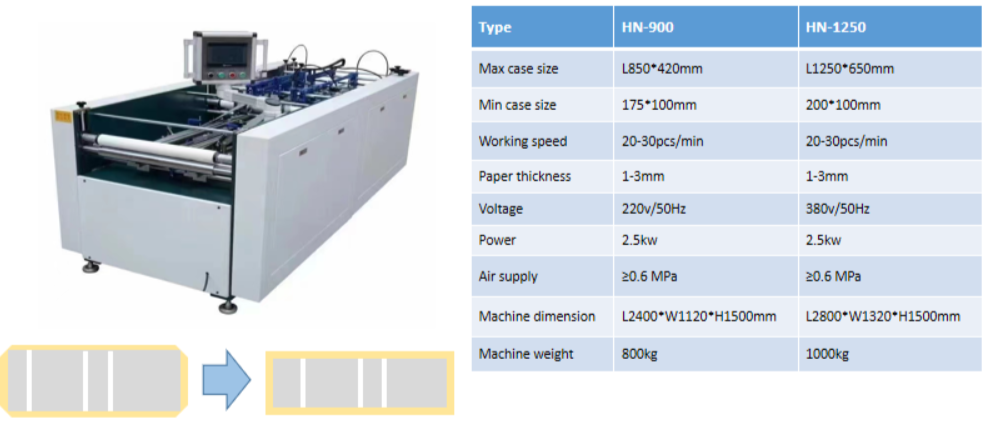

Item Specification
Name STC-FSCW-900 Automatic Four Sides Wrapping Machine
Type STC-FSCW-900
Max Case Size L850 × 420 mm
Min Case Size 175 × 100 mm
Working Speed 20–30 pcs/min
Paper Thickness 1–3 mm
Voltage 220 V / 50 Hz
Power 2.5 kW
Air Supply ≥ 0.6 MPa
Machine Dimension L2400 × W1120 × H1500 mm
Machine Weight 800 kg

[hfe_template id=’834′]

Category:

Description

This machine is used for case and hardcover wrapping of book cases, wine boxes, tea boxes, moon cake boxes, notebook cases, calendars, file folders, and other similar products.

It adopts PLC and touch screen control with a servo motor cam system to achieve accurate and fast folding of all four sides of the case.

Features

  • Fast production speed with high efficiency and accurate performance

  • Folds four edges at one time, practical and convenient

  • Touch screen operation for simple control and quick size change

  • Double section structure can be separated for easier shipment and movement
