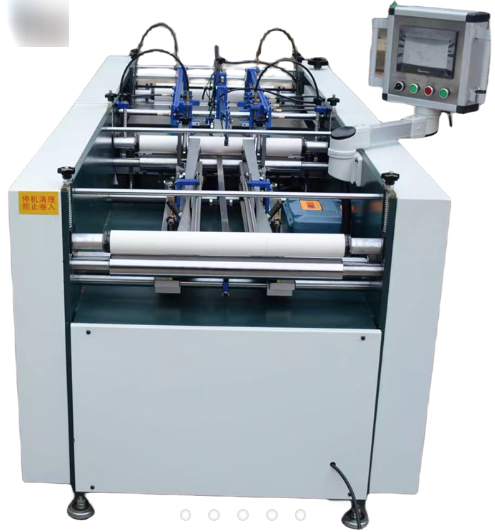

STC-FSCW-1250 Big Size Automatic Four Sides Wrapping Machine

Availability: In Stock

Item Specification
Name STC-FSCW-1250 Big Size Automatic Four Sides Wrapping Machine
Type STC-FSCW-1250
Max Case Size L1250 × 650 mm
Min Case Size 200 × 100 mm
Working Speed 20–30 pcs/min
Paper Thickness 1–3 mm
Voltage 380 V / 50 Hz
Power 2.5 kW
Air Supply ≥ 0.6 MPa
Machine Dimension L2800 × W1320 × H1500 mm
Machine Weight 1000 kg

[hfe_template id=’834′]

Category:

Description

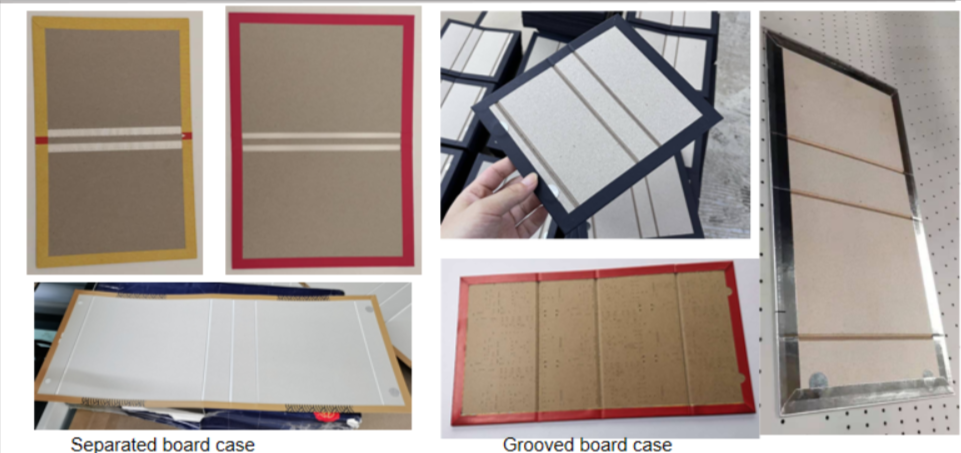

This machine is used for case and hard cover wrapping of book cases, wine boxes, tea boxes, moon cake boxes, notebook cases, calendars, file folders, and similar products.

The four sides wrapping machine adopts PLC and touch screen control with a servo motor cam system to achieve accurate and fast folding of all four sides of the case.

Features

  • Fast production speed with high efficiency and accurate performance

  • Can fold four edges at one time, practical and convenient

  • Touch screen operation and control for simple use and quick size change

  • Double section structure can be separated, making shipment and movement easier
