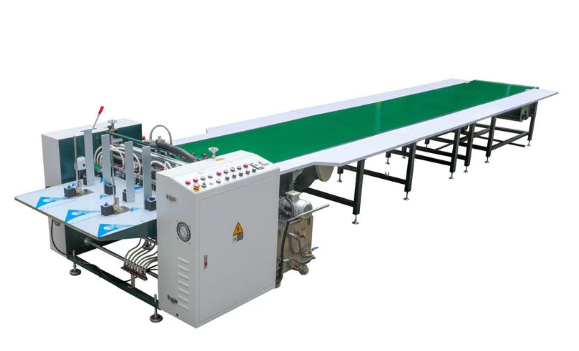

STC-AFGM-650 Automatic Smart Paper Gluing Machine

In Stock

Item	Specification
Name	STC-AFGM-650 Automatic Smart Paper Gluing Machine
Type	STC-AFGM-650
Paper Width	W30–580 mm
Paper Thickness	80–400 gsm
Working Speed	5–50 pcs/min
Air Pressure	0.6–0.8 MPa
Voltage Supply	380V, 3 phase
Motor Power	8 kW
Machine Dimension	L6990 × W1525 × H995 mm
Machine Weight	1100 kg

[hfe_template id=’834′]

Description

Features

Servo control with stop function. One button switch between continuous and intermittent modes
Bionic ergonomics paper feeding to effectively reduce double sheet feeding
Moveable glue tank with mixing function to maintain balanced glue heating
Shorter overall length of 6.99 meters for easier shipment and installation with less space required
Slope conveyor design for smoother gluing and easier feeding of narrow paper
Durable glue roller with chromium surface coating
Touch screen control for easier operation and integration with other machines
Changeable belt color to suit different production requirements, optional
Two meter suction area in the conveyor, optional 4 meter suction area
Automatic glue viscosity device to maintain stable glue thickness, optional
Automatic belt cleaning device to reduce labor and save time, optional
