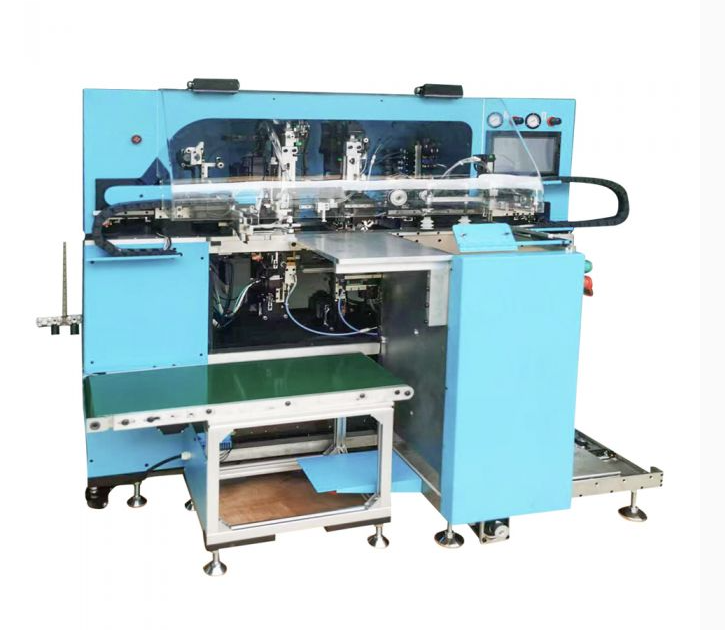

The STC-420B Automatic Notebook Elastic Band Fixing Machine fully automates elastic band application, handling feeding, punching, threading, cutting, gluing, fixing, and stacking in one compact system. With servo-driven stability, stored job settings, and flexible auto/semi-auto modes, it delivers high-speed, efficient production for hardcover, softcover, and pre-cased notebooks.
[hfe_template id=’834′]
| Parameter | Specification |
|---|---|
| Min Cover Size | 70×100mm (W×L) |
| Max Cover Size | 300×420mm (W×L) |
| Working Speed | 2000 pcs/h |
| Distance between 2 Holes | 40-271 mm |
| Distance from Hole to Upper and Bottom Side | 9-100 mm |
| Distance from Hole to Cover Edge Side | 0-40 mm |
| Elastic Band Length | 0-160 mm |
| Cover Thickness | 0.7-7 mm |
| Width of Elastic Band | 6-10 mm |
| Dimensions | 1600×930×1385(L×W×H) |
| Power | 8 KW |
| Voltage | 220 V |
| Weight | 310 KG |
