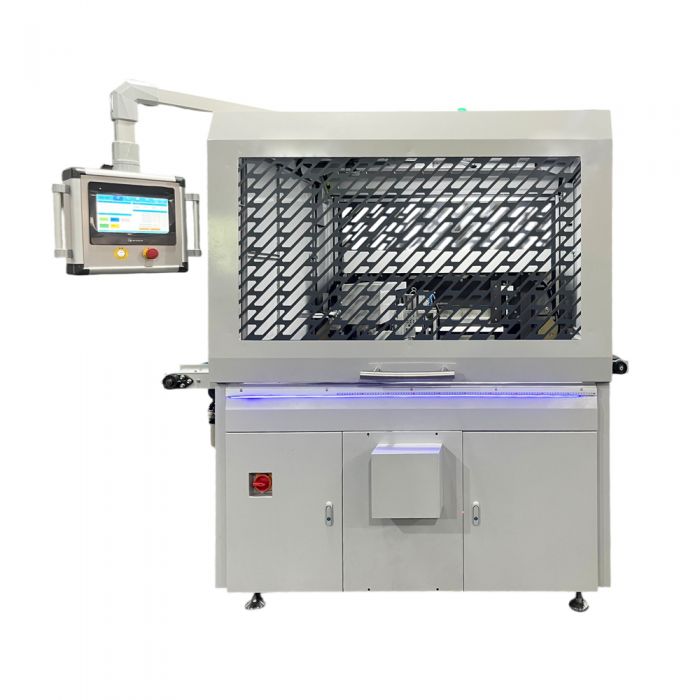

HDP TST Digital Three Side Trimmer

Availability: In Stock

Engineered for digital finishing, HDP TST Digital Three Side Trimmer utilizes advanced single-knife technology with automated pile rotation to deliver precise, markless cutting for perfect bound, sewn block, and board books. This robust system features zero-makeready capabilities, enabling instant format changes via barcode scanning or JDF workflow integration. Its servo-controlled hydraulic clamping automatically adjusts to variable book thicknesses, while the unique bi-directional knife movement prevents spine tearing. With optional corner rounding and a fully interlocked safety design, HDP TST supports unattended operation

[hfe_template id=’834′]

Description

Parameter Specification
Max Feeding Book Size 830 × 390 mm (Front Edge × Height)
Min Feeding Book Size 120 × 140 mm (Front Edge × Height)
Max Finished Book Size 320 × 380 mm (Front Edge × Height)
Min Finished Book Size 110 × 130 mm (Front Edge × Height)
Thickness 5 to 40 mm (Minimum thickness is related to book size)
Feeding Direction Spine-First Feeding
Max Spine Centering Center of the spine must not exceed 195 mm
Min Spine Centering Center of the spine must not exceed 67.5 mm
Speed 240 to 300 cuts per hour (Speed is related to book weight)
Accuracy ±0.5 mm
Power 8 kW
Weight 1800 kg
Dimensions 2000 × 1500 × 1900 mm
