Description

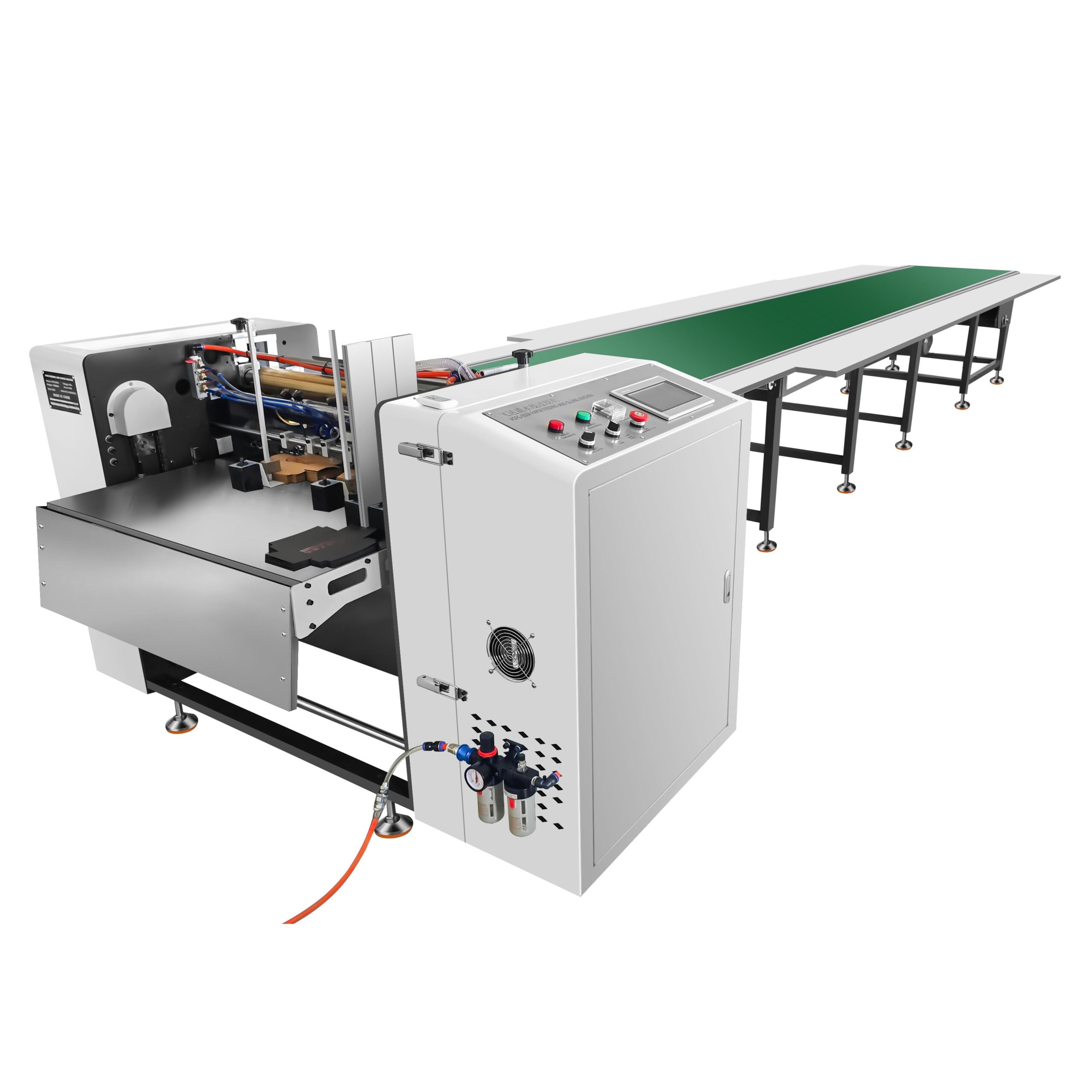

This machine is an essential gluing and conveying equipment for rigid lid and base gift boxes and various premium hardcover products. It is mainly used for surface paper gluing and precise positioning of gift boxes or hardcovers.
The machine is equipped with an automatic paper feeder, automatic glue circulation system, and air suction conveyor line. It is easy to operate, runs smoothly, and significantly improves production efficiency.
Functions
-
The paper lifting platform adopts electric control for height adjustment, allowing efficient product changeover.
-
The feeder system uses a wireless remote control system.
-
High precision sensors monitor the paper feeding system in real time, effectively preventing double or multiple sheet feeding, improving production efficiency and increasing the qualified product rate.
-
Equipped with hot and cold glue storage and circulation systems, greatly reducing glue consumption and lowering maintenance difficulty.
-
Newly designed machine structure, stable, durable, and easy to maintain.
Introduction
This machine is widely used for gluing surface paper for various gift boxes and hardcover products, especially for box or hardcover sheet covering. It features automatic feeding, automatic gluing system, and air blowing system. It is easy to operate and runs steadily.
Product Parameters
| Model | DG-850A | DG-650A |
|---|---|---|
| Paper Size | ||
| Length (L) | 50–1050 mm | 50–1050 mm |
| Width (W) | 30–780 mm | 30–600 mm |
| Thickness (T) | 80–350 gsm | 80–350 gsm |
| Output Speed | 7–40 pcs/min | 7–40 pcs/min |
| Voltage / Power | AC 380V / 50Hz / 9 kW | AC 380V / 50Hz / 9 kW |
| Required Air Pressure | 0.6–0.8 MPa | 0.6–0.8 MPa |
| Machine Dimensions | 8000 mm × 1850 mm × 1200 mm | 8000 mm × 1850 mm × 1200 mm |
| Machine Weight | 1350 kg | 1150 kg |
