Description

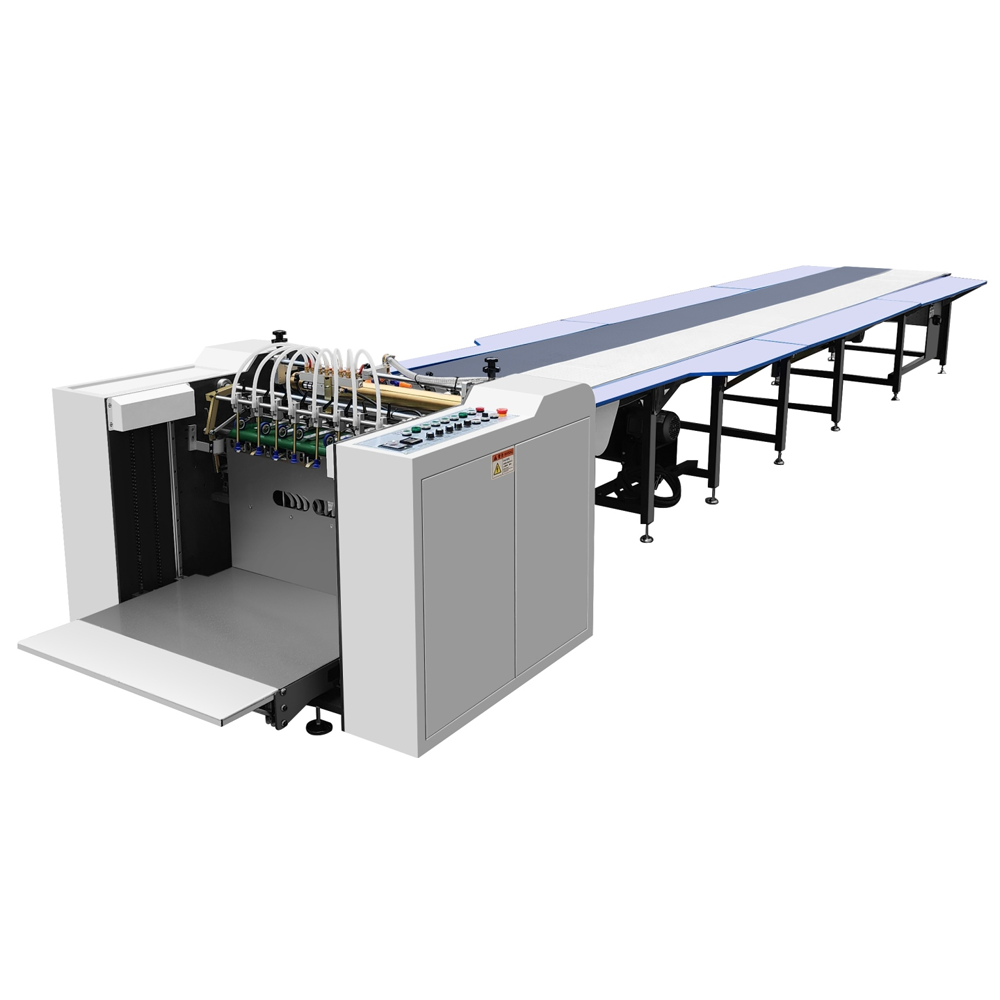

DG-850/650 Paper Sheet Auto Feeding and Gluing Machine
This machine is designed for gluing surface paper for rigid gift boxes, lid and base boxes, and various hardcover products. It is mainly used for paper gluing and precise positioning before box forming.
Equipped with an automatic feeder, automatic glue circulation system, and air suction conveyor, the machine is easy to operate, runs steadily, and significantly improves production efficiency.
Key Features
-
The paper lifting table is electrically controlled, allowing fast and efficient product changeover.
-
The feeder system is equipped with wireless remote control for convenient operation.
-
High precision sensors monitor the feeding process in real time to prevent double or multiple sheet feeding, improving efficiency and product quality.
-
Built with both cold glue and hot glue circulation systems, reducing glue consumption and lowering maintenance requirements.
-
Newly optimized machine structure for stable performance, durability, and easier maintenance.
| Model | DG-850A | DG-650A |
|---|---|---|
| Paper Size | ||
| Length | 50–1050 mm | 50–1050 mm |
| Width | 30–780 mm | 30–600 mm |
| Thickness | 80–350 gsm | 80–350 gsm |
| Output Speed | 7–40 pcs/min | 7–40 pcs/min |
| Voltage / Power | AC 380V / 50Hz / 9 kW | AC 380V / 50Hz / 9 kW |
| Air Pressure | 0.6–0.8 MPa | 0.6–0.8 MPa |
| Machine Dimensions | 8000 × 1850 × 1200 mm | 8000 × 1850 × 1200 mm |
| Machine Weight | 1350 kg | 1150 kg |
